Product Description

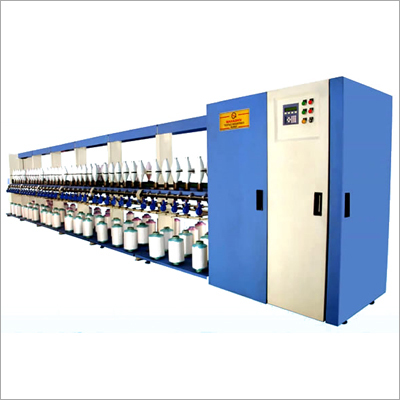

Our Mechanical Winder is an efficient textile equipment crafted with traverse arrangement for spiral winding. This simple and sturdy product is very portable which assist in effective operation and maintenance. All essential parts are heat treated to withstand harsh conditions. This machine is widely preferred for its accurate results and precise controlling system.
Spindles, less tube holder with two double sealed ball bearings ensure smooth running and firm hold of the plastic tube. Our versatile equipment built with tension device is genuinely suited for different yarn counts.
Mechanical Cops Winder | Technical Specification |
| | |
| Models | | | No. of Spindle | 48 | 60 | 72 | 84 | 96 | 6.460 | 7.700 | 8.940 | 10.180 | 11.420 | | | Machine Length in meter | | Machine Width in mm | 950 mm | | Machine Height in mm | 1600 mm | | Spindle Pitch | 185 mm | | No. of Spindles / section | 12 Spindles ( 6 x 2 ) | | Spindle RPM | 7000 Max | | Spindle Drive | Tangential Belt | | Take Up Pirn ( Cops ) | 32 mm ID x 240 mm / 270 mm L.
37 mm ID x 270 / 320 mm L. | | Take Up Content | upto 1200 gms. | | Supply Package | Cops, Cheese, Cone | | Yarn Speed | 800 mtr/min. | | Denier Range | 30-300 Denier | | Tension | Dial Set Gate Tensioning Device | Spindle Drive Motor.
( By Invertors Control ) | 48 to 72 Sp - 3 H.P., 84 to 96 Sp - 4 H.P. | | Traverse Drive Motor | | | Traverse Stroke | 290 mm Max | | Traverse Slide System | Cambox (self lubricating) | | Oiling Device | By Motor Drive | | Oiling Device Control | Manually Controlled by Speed Regulator | | |
| |
