Servo Winder for textile machines

Product Description

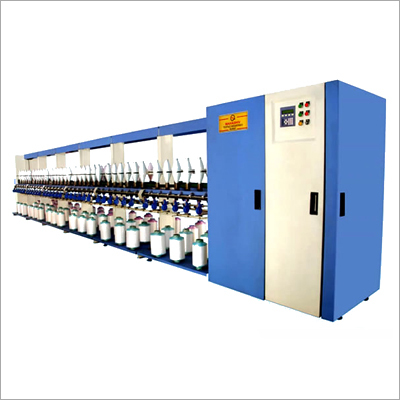

Servo Winder For Textile Machines

Servo Winder that we offer to our valuable customers is a premium textile equipment manufactured with the aid of advanced technology. Our machinery oiled by motor device are preferred for smooth functioning and accurate winding. The oiling device is manually controlled by speed regulator for ensuring greater efficacy and accurate results.

This winding machine delivers uniform yarn speed without change in tension to ensure high quality winding. These potable instruments built with tension device are genuinely suited for different yarn counts. Our machinery are very easy to operate and requires comparatively less maintenance.

Servo Cops Winder

	> Technical Specification
	Models MTI - SMD ( Servo Motor Drive ) No. of Spindle 48 60 72 84 96 6.460 7.700 8.940 10.180 11.420 Machine Length in meter Machine Width in mm 950 mm Machine Height in mm 1600 mm Spindle Pitch 185 mm No. of Spindles / section 12 Spindles ( 6 x 2 ) Spindle RPM 7000 Max Spindle Drive Tangential Belt Take Up Pirn ( Cops ) 32 mm ID x 240 mm / 270 mm L. 37 mm ID x 270 / 320 mm L. Take Up Content upto 1200 gms. Supply Package Cops, Cheese, Cone Yarn Speed 800 mtr/min. Denier Range 30-300 Denier Tension Dial Set Gate Tensioning Device Spindle Drive Motor. ( By Invertors Control ) 48 to 72 Sp - 3 H.P., 84 to 96 Sp - 4 H.P. Traverse Drive Motor MTI - SMD 239 nm / 500 V.A. Traverse Stroke 290 mm Max Traverse Slide System Guide Way Ball Screw Oiling Device By Motor Drive Oiling Device Control Manually Controlled by Speed Regulator
