Yarn twister Machine

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Yarn twister Machine

Model No.: MTI-157

Technical Specification

No. of Spindles

352	384	416	448
20.260	21.920	23.580	25.240
780	780	780	780
1700	1700	1700	1700
5 H.P. x 2	7.5 H.P. x 2	7.5 H.P. x 2	7.5 H.P. x 2

Machine Length in meter

Machine Width in mm

Machine Height in mm

Connected Power ( H.P. )

No. of Spindles / section

32 Spindles ( 8 x 2 x 2)

Spindle Pitch

180 mm

Spindles Pot Dia.

70 mm

Starting Method

Slow Start Star Delta

Max. Mechanical Spindle Speed

18000 rpm

Spindle Drive System

Tangential Belt

Spindle RPM

7000 rpm to 16000 rpm

Twist Range

350 - 4000 tpm

Yarn Speed

55 mtr / min.

Denier Range

30-250 Denier

Take Up Spool

150 mm flange dia x 144 mm traverse
Double flange Bobbin or
57 / 69 mm dia x 157 mm L Tube

Yarn Feed Tension

Ball Tensor

Take Up System

Cradle Type

Feed Tube

32 mm I.D. x 36 mm O.D. x 240/270 mm Length
37mm I.D. x 42 mm O.D. x 240/270 mm Length

Traverse System

Oil bath Cambox, Common Traversing

Package Weight

1 kg. in bobbin and 1.3 kg. in Tube

Package Shape

Cylindrical and Bi - Conical

Other Products in 'Two for One Twister' category

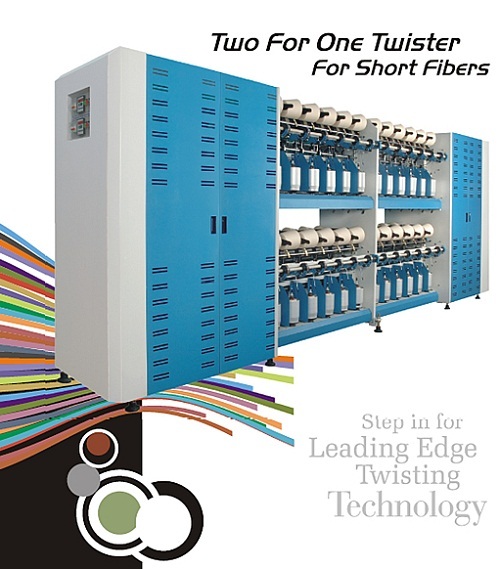

Short Fiber Two for One Twister

Send Inquiry

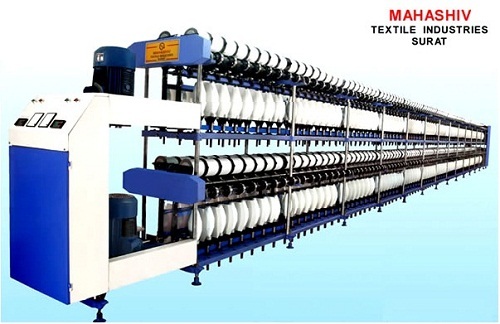

Filament Yarn Twister
