Product Description
Filament Yarn Twister
Filament Yarn that we manufacture for our valuable clients consists of very long continuous fibers either twisted together or only grouped together. These yarns manufactured using superior raw materials are tested on stringent quality factors for ensuring flawless performance.
Extensively used for industrial purposes these products are also applied in the production of textile, knitting, weaving and embroidery. Our high tensile yarns are manufactured with the assistance of cutting edge modern technology. Synthetic filament yarns are preferred for producing silk-like effects.

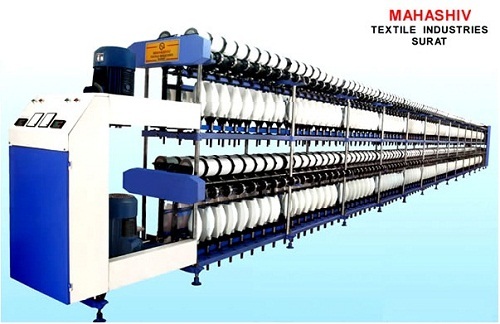

Two For One Twister For Filament Yarn
| Model No.: MTI-127 |
| | |
| Technical Specification | |
| | |
| No. of Spindles | | 352 | 384 | 416 | 448 | 15.670 | 16.940 | 18.210 | 19.480 | 660.4 | 660.4 | 660.4 | 660.4 | 1650 | 1650 | 1650 | 1650 | 4 H.P. x 2 | 4 H.P. x 2 | 5 H.P. x 2 | 5 H.P. x 2 | | | Machine Length in meter | | Machine Width in mm | | Machine Height in mm | | Connected Power ( H.P. ) | | No. of Spindles / section | 32 Spindles ( 8 x 2 x 2) | | Spindle Pitch | 150 mm | | Spindles Pot Dia. | 70 mm | | Starting Method | D.O.L. Starter ( Star Delta Optional ) | | Max. Mechanical Spindle Speed | 18000 rpm | | Spindle Drive System | Tangential Belt | | Spindle RPM | 7000 rpm to 16000 rpm | | Twist Range | 600 - 4000 tpm | | Yarn Speed | 40 mtr/min. | | Denier Range | 30-250 Denier | | Take Up Spool | 130 mm flange dia x 112 mm traverse
Double flange Bobbin. | | Yarn Feed Tension | Ball Tensor | | Take Up System | Mandrill Type ( Cradle hinge type optional ) | | Feed Tube | 32 mm I.D. x 36 mm O.D. x 240 mm L. | | Traverse System | Oil bath Cambox, Common Traversing | | Package Weight | 600 gms. | | Package Shape | Cylindrical | | |
| | |
 |
