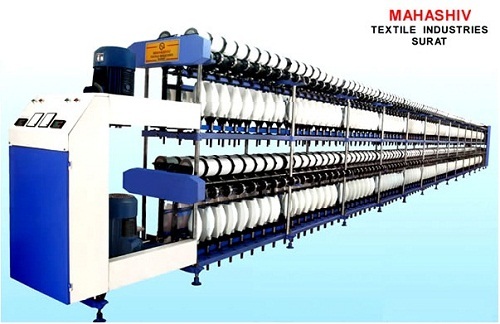

Filament Yarn Twisting Machine

No. of Spindles

Machine Length in meter

Machine Width in mm

Machine Height in mm

Connected Power ( H.P. )

No. of Spindles / section

32 Spindles ( 8 x 2 x 2)

Spindle Pitch

200 mm

Spindles Pot Dia.

70 mm / 90 mm

Starting Method

Slow Start Star Delta

Max. Mechanical Spindle Speed

18000 rpm

Spindle Drive System

Tangential Belt

Spindle RPM

7000 rpm to 16000 rpm

Twist Range

350 - 4000 tpm

Yarn Speed

55 mtr / min.

Denier Range

30-250 Denier

Take Up Spool

145 mm flange dia x 160 mm traverse
Double flange Bobbin or
57 / 69 mm dia x 170 mm L Tube

Yarn Feed Tension

Ball Tensor

Take Up System

Cradle Type

Feed Tube

32 mm I.D. x 36 mm O.D. x 240/270 mm L.
37mm I.D. x 42 mm O.D. x 240/270 mm L

Traverse System

Oil bath Cambox, Common Traversing

Package Weight

1.2 kg. in Double Flange bobbin and 1.5 kg. in Tube

Package Shape

Cylindrical and Bi - Conical
